What Construction Tools Can a 3600W Portable Power Station Run?
A 3600W portable power station can operate many common construction tools, but rated wattage is only one part of the calculation. Contractors also need to consider the tool’s voltage, running current, startup demand, plug type and working cycle.
This is especially important for motor-driven equipment such as circular saws, air compressors, miter saws and dust extractors. A tool may consume less than 2000W during normal operation but require substantially more power for a short period when the motor starts.

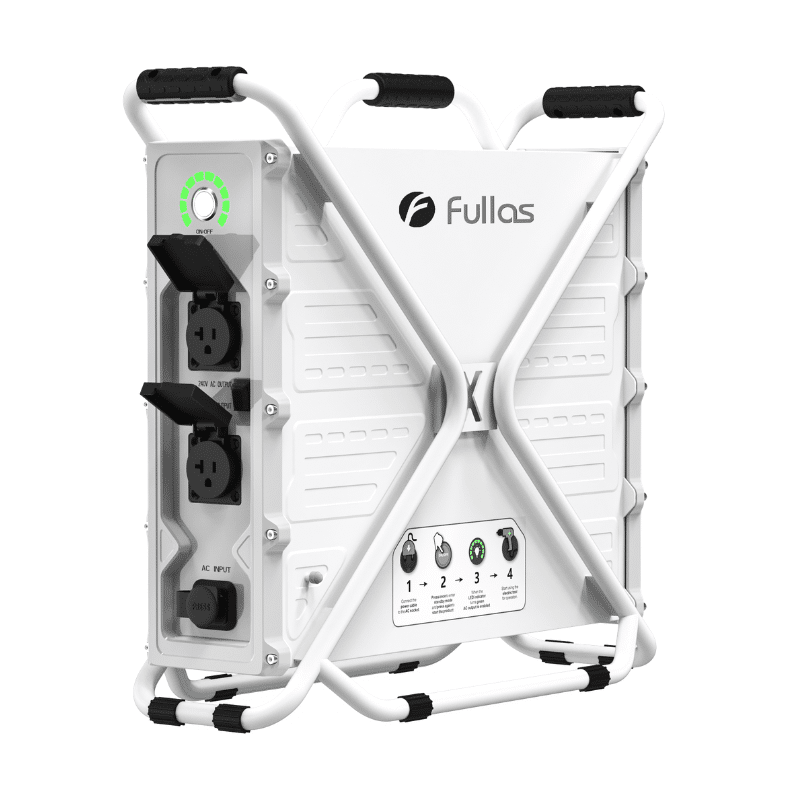

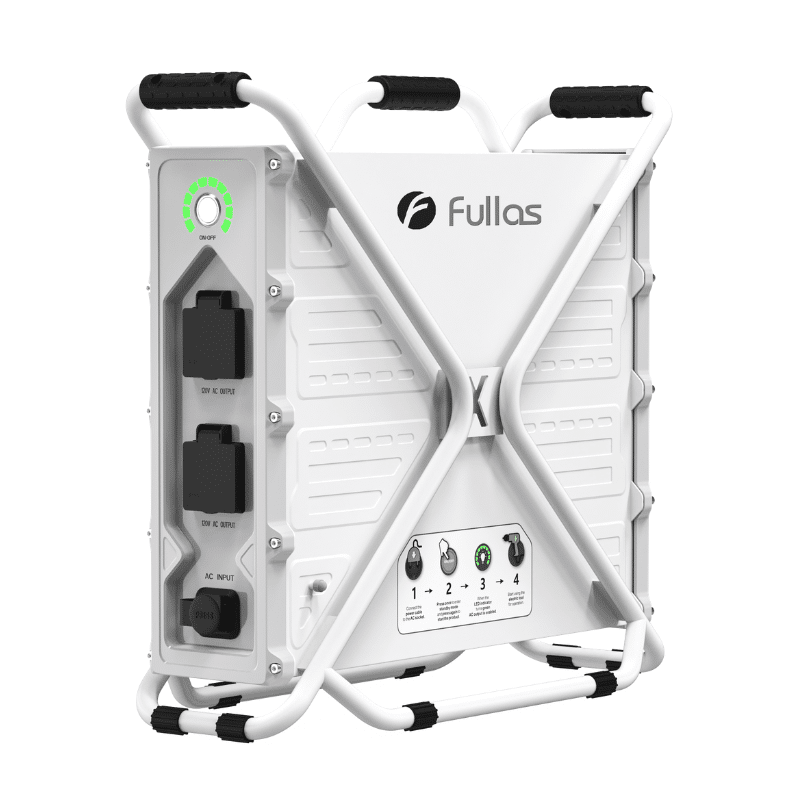

The FPG3600-US 3600W portable power station is designed for US jobsite applications with 120V, 60Hz pure sine wave output, 3600W rated power and 2304Wh battery capacity. It can support a wide range of professional construction tools when the load, outlet and startup requirements are properly matched.
FPG3600-US Key Power Specifications
The main specifications contractors need to consider include:
- Rated output power: 3600W
- Battery capacity: 2304Wh
- Output voltage: 120V AC
- Output frequency: 60Hz
- Output waveform: Pure sine wave
- NEMA 5-20 output limit: Up to 2400W
- NEMA L5-30 output limit: Up to 3600W
- Peak output: Up to 20,000W for short-duration startup loads
- Protection rating: IP54
- Net weight: Approximately 24kg
- Battery type: NCM 21700
The 3600W rating represents the maximum continuous output of the complete power station. However, each individual outlet also has its own limit.
For example, a tool connected through the NEMA 5-20 outlet should remain within the 2400W outlet rating, even though the total inverter output is 3600W. Loads approaching the full system capacity should use the correctly rated output connection, cable and distribution equipment.
The 20,000W peak output does not mean the unit can continuously power a 20,000W machine. Peak power is available only for a short period to support motor startup and other brief high-inrush loads.
Three Checks Before Connecting a Construction Tool
Before connecting any tool to a portable power station, contractors should verify three basic factors.
Check the Voltage and Frequency
The FPG3600-US is configured for 120V and 60Hz applications. The connected equipment should therefore be designed for the same electrical system.
A 240V-only saw, compressor, pump or welder cannot be directly powered by the US version, even when its rated wattage appears to be below 3600W.
Check the tool nameplate for:
- Rated voltage
- Rated frequency
- Rated current
- Input wattage
- Plug type
- Starting-current requirements
Calculate the Running Load
When the nameplate provides amps but not watts, a basic estimate can be made with the following formula:
Approximate load = Voltage × Current
For example, a 120V tool rated at 15A has an approximate apparent load of:
120V × 15A = 1800VA
This estimate is useful for preliminary selection, but actual input may vary because of motor efficiency, power factor, electronic controls and working load.
The tool manufacturer’s specifications should always take priority.
Consider the Startup Surge
Motor-driven tools often require more current during startup than during normal operation.
This applies particularly to:
- Air compressors
- Circular saws
- Miter saws
- Table saws
- Pumps
- Dust extractors
- Core drills
- Demolition equipment
A tool may operate at 1500W after startup but briefly demand several times that amount when the trigger is pressed.
The FPG3600-US provides strong short-duration overload capability, but compatibility should still be verified using the actual tool specification or a controlled load test.
Construction Tool Compatibility Overview
| Construction Tool | General Compatibility | Main Consideration |
|---|---|---|
| Corded drill | Suitable | Check rated amps |
| Hammer drill | Suitable | Load may rise in hard concrete |
| Rotary hammer | Suitable for many models | Confirm rated input |
| Angle grinder | Suitable for many models | Startup surge and grinding pressure |
| Reciprocating saw | Suitable | Blade binding can increase load |
| Circular saw | Suitable for many 120V models | High startup current |
| Miter saw | Requires verification | Motor startup surge |
| Jobsite table saw | Requires careful verification | Startup and sustained cutting load |
| Wet tile saw | Often possible | Combined saw and pump demand |
| Shop vacuum | Suitable as a single load | Startup surge |
| Dust extractor | Suitable for many models | Combined load with saws |
| Portable air compressor | Model-dependent | High motor startup current |
| Core drill | Model-dependent | High continuous load |
| Demolition hammer | Model-dependent | Duty cycle and sustained output |
| Battery chargers | Highly suitable | Check total charger input |
| LED jobsite lighting | Highly suitable | Low continuous load |
| 120V portable welder | Requires individual testing | Input varies with welding settings |
| 240V equipment | Not directly compatible | Incorrect voltage |
| Three-phase equipment | Not compatible with one unit | Requires three-phase configuration |
This table is intended as a selection guide. Construction tools vary significantly between brands and models, so contractors should always check the actual nameplate and operating manual.
Can a 3600W Portable Power Station Run a Corded Drill?
Corded drills are among the easiest construction tools to power with the FPG3600-US.
Many standard drills, hammer drills and rotary hammers operate well below the NEMA 5-20 outlet limit. They are therefore suitable for drilling wood, steel, masonry and concrete, provided that the rated current remains within the outlet capacity.
The actual power demand depends on the application.
Drilling small holes in wood places less demand on the motor than drilling large-diameter holes in reinforced concrete. Core bits, heavy chiseling and continuous drilling may also increase power consumption and reduce runtime.
For professional drilling work, contractors should consider both the rated input and the working conditions rather than relying only on the no-load power figure.
Can It Run an Angle Grinder?
Many 120V angle grinders are suitable for a 3600W portable power station.
Angle grinders are commonly used for:
- Metal cutting
- Weld cleanup
- Surface preparation
- Concrete grinding
- Rust removal
- Tile cutting
Smaller and medium-sized grinders generally remain within the NEMA 5-20 output limit.
However, excessive grinding pressure can slow the disc and increase motor current. A damaged, worn or incorrect disc can also increase the load.
When using a grinder continuously, battery capacity may become the main limitation rather than inverter output.
Can It Run a Circular Saw?
The FPG3600-US can run many common 120V circular saws.
Circular saws usually have a relatively high startup demand, especially larger models with powerful motors. Once the blade reaches full speed, the running load is normally lower.
For more reliable operation:
- Start the saw before the blade contacts the material
- Allow the motor to reach full speed
- Use a sharp and suitable blade
- Avoid forcing the saw through the material
- Prevent the blade from binding
- Do not start another high-load tool at the same time
Wet lumber, deep cuts and dull blades can substantially increase power demand.
A circular saw that operates within the 2400W NEMA 5-20 outlet rating is generally a practical application for the FPG3600-US, provided that its startup current remains compatible.
Can It Run a Reciprocating Saw?
Most professional 120V reciprocating saws can be supported when their rated input remains within the outlet limit.
These tools are commonly used for:
- Demolition
- Pipe cutting
- Wood cutting
- Metal cutting
- Renovation work
The main risk occurs when the blade becomes trapped or binds in the material. This can create a temporary current increase.
Operators should use the correct blade and avoid forcing the tool under heavy load.
Can It Run a Miter Saw?
Many 120V miter saws may be compatible, but they require more careful evaluation than ordinary drills or grinders.
Miter saws often use high-current motors and can have a noticeable startup surge. Large blade sizes and repeated cutting cycles can also increase the demand.
Before connecting a miter saw, check:
- Rated voltage
- Rated amps
- Blade size
- Startup demand
- Plug type
- Whether a vacuum will operate simultaneously
A miter saw and dust extractor may each be suitable individually but exceed the outlet limit when connected together.
Can It Run a Jobsite Table Saw?
Some portable jobsite table saws can be powered by the FPG3600-US, but compatibility depends on the specific motor and cutting conditions.
Table saws commonly draw high current during startup. Their operating load can also increase during long rip cuts, thick-material cutting or blade binding.
Contractors should provide a reasonable power margin rather than operating continuously at the maximum outlet capacity.
The saw should be tested with the actual blade and material before being deployed for regular jobsite use.
Can It Run a Shop Vacuum or Dust Extractor?
Many shop vacuums and portable dust extractors are suitable as individual loads.
The main issue is combined operation with another high-power tool.
For example:
- Circular saw: 1800W
- Dust extractor: 1000W
- LED lighting: 150W
- Combined running load: 2950W
The combined load is below the FPG3600-US total rated output of 3600W. However, it exceeds the 2400W limit of one NEMA 5-20 outlet.
This means the equipment would need to be distributed through correctly rated connections rather than connected to the same 20A outlet.
Simultaneous startup should also be avoided. Starting the vacuum before the saw can help reduce the chance of two motor surges occurring at the same moment.
Can It Run an Air Compressor?
Portable air compressors are among the most difficult tools to evaluate.
The motor may draw a strong startup current every time the tank pressure drops and the compressor restarts. A compressor with a moderate running load may still exceed the inverter limit during startup.
Before connecting an air compressor, check:
- Rated voltage
- Running amps
- Starting current
- Tank size
- Motor type
- Restart frequency
- Pressure-release system
- Whether the unit uses soft-start technology
Small portable compressors may be practical, while larger compressors can require more startup power than a single FPG3600-US can provide.
A controlled compatibility test is strongly recommended before regular jobsite use.
Can It Run a Core Drill?
Some 120V core drills may be compatible, but core drilling is a demanding continuous-load application.
Power consumption depends on:
- Drill motor size
- Core-bit diameter
- Concrete hardness
- Reinforcement
- Drilling depth
- Wet or dry drilling method
Large-diameter drilling can keep the motor close to its rated load for extended periods. This reduces battery runtime more quickly than intermittent drilling.
For core drilling, output should be evaluated according to the number and depth of holes rather than expecting continuous all-day operation.
Can It Run a Demolition Hammer?
Many 120V demolition hammers and breakers may operate within the FPG3600-US output range, but contractors need to check both input power and duty cycle.
A demolition hammer can place a sustained load on the battery during continuous chiseling. Even when the inverter can support the tool, the 2304Wh capacity may be consumed relatively quickly.
The power station is more suitable for:
- Intermittent demolition
- Repair work
- Small-area concrete removal
- Indoor renovation
- Mobile maintenance
Large breakers designed for continuous heavy demolition may require a larger power system.
Can It Run Battery Chargers?
Tool battery chargers are one of the most suitable applications for a portable power station.
The FPG3600-US can function as a mobile charging station for cordless construction tools, including batteries used for:
- Drills
- Impact drivers
- Saws
- Grinders
- Nailers
- Rotary hammers
- Inspection equipment
Several chargers may operate simultaneously when their combined input remains within the outlet rating.
High-speed chargers can consume considerably more power than standard chargers, so each charger’s input should still be checked.
Can It Run Jobsite Lighting?
LED jobsite lighting is another highly suitable application.
Lighting normally requires much less power than saws, compressors or demolition tools. This allows longer operating time and leaves capacity available for chargers and smaller tools.
Typical applications include:
- Indoor renovation
- Night construction
- Inspection work
- Temporary site lighting
- Emergency repair
- Roadside maintenance
For contractors who need a broader overview of battery-based jobsite power, see How Contractors Power Construction Tools Without Gas Generators.
How Long Can a 2304Wh Power Station Run Construction Tools?
Power output and battery capacity describe two different things.
- Watts determine whether the power station can operate the tool.
- Watt-hours determine approximately how long the tool can operate.
The basic theoretical runtime formula is:
Runtime = Battery capacity ÷ Tool input power
For the FPG3600-US:
Runtime = 2304Wh ÷ Load wattage
| Continuous Load | Theoretical Runtime |
| 500W | Approximately 4.61 hours |
| 750W | Approximately 3.07 hours |
| 1000W | Approximately 2.30 hours |
| 1200W | Approximately 1.92 hours |
| 1500W | Approximately 1.54 hours |
| 1800W | Approximately 1.28 hours |
| 2400W | Approximately 0.96 hours |
| 3000W | Approximately 0.77 hours |
| 3600W | Approximately 0.64 hours |
These are theoretical calculations. Actual runtime will be lower because of:
- Inverter conversion losses
- Battery protection reserve
- Ambient temperature
- Cable losses
- Tool efficiency
- Changing motor load
- Battery condition
Construction tools also rarely operate continuously.
A circular saw may run for only several seconds per cut. A drill stops while the operator changes bits or moves to another position. A compressor operates only when tank pressure falls.
For this reason, the actual elapsed jobsite operating time may be much longer than the continuous-load calculation.
For many tools, the number of cuts, holes, grinding cycles or battery charges is a more useful measure than runtime in hours.
Can It Run Multiple Tools at the Same Time?
The FPG3600-US can operate multiple tools, but the total running load and startup load must remain within the system limits.
Contractors should calculate:
- The combined continuous wattage
- The rating of the individual outlet
- The simultaneous startup demand
- The cable and distribution capacity
Consider the following example:
- Saw: 1800W
- Dust extractor: 1000W
- Lighting: 150W
- Total: 2950W
The total is below the system’s 3600W rated output, but it is higher than the 2400W limit of one NEMA 5-20 outlet.
The tools would therefore need to be connected through correctly rated distribution equipment using the appropriate output connection.
A better operating method is to:
- Start one motor-driven tool at a time
- Start the dust extractor before the saw
- Avoid simultaneous motor startup
- Use correctly rated extension cables
- Keep total continuous load below 3600W
- Keep NEMA 5-20 loads below 2400W
- Leave a safety margin for changing conditions
Tools That Should Not Be Connected to One FPG3600-US
A single FPG3600-US is not suitable for equipment that requires:
- 240V-only input
- Three-phase input
- More than 3600W continuous power
- A plug rating beyond the available outputs
- Prolonged operation above the inverter rating
- Startup current beyond the tested overload capability
Potential examples include:
- Large air compressors
- High-output welders
- Large concrete saws
- Industrial heaters
- Three-phase pumps
- Stationary workshop machinery
- Large dust-collection systems
- Heavy industrial cutting equipment
Resistive heaters deserve particular attention because they continuously consume their full rated wattage.
A 3000W heater would theoretically consume the 2304Wh battery in less than one hour before conversion losses are considered.
Pure Sine Wave Power for Professional Tools
The FPG3600-US provides pure sine wave AC output.
This is important for construction equipment containing:
- Electronic speed controls
- Digital displays
- Battery chargers
- Sensitive control boards
- Brushless motors
- Measurement equipment
Pure sine wave power more closely matches normal utility electricity than a basic modified sine wave inverter.
This can improve compatibility and reduce the risk of abnormal noise, excessive heat or unstable operation in sensitive equipment.
Jobsite Safety Considerations
A battery power station eliminates direct exhaust emissions from the power source, but it does not eliminate electrical risk.
Contractors should still follow proper electrical safety procedures, including:
- Inspecting cables before use
- Avoiding damaged plugs
- Using correctly rated extension cords
- Keeping connections away from standing water
- Avoiding improvised adapters
- Maintaining proper ventilation around the unit
- Preventing unauthorized modification
- Following site-specific grounding and protection requirements
OSHA explains the role of ground-fault circuit interrupters in reducing electrical hazards on construction sites. Contractors can review the official OSHA guidance on construction GFCI protection.
Information about standardized US wiring devices is also available from the National Electrical Manufacturers Association.
Battery-powered equipment is particularly useful for indoor or semi-enclosed work because it does not produce engine exhaust during operation. OSHA has also published guidance about the carbon-monoxide risks associated with portable gasoline-powered construction equipment in enclosed areas.
See the official OSHA construction carbon-monoxide guidance.
When Is a 3600W Portable Power Station Most Suitable?
A 3600W jobsite power station is particularly useful for:
- Indoor renovation
- Residential construction
- Urban projects with noise restrictions
- Mobile repair work
- Temporary lighting
- Cordless-tool charging
- Remote maintenance
- Short-duration drilling and cutting
- Worksites without grid electricity
- Projects requiring frequent movement between work areas
It is less suitable for equipment that must operate continuously at maximum output throughout the entire workday.
Fuel generators may still be more practical for uninterrupted heavy loads. Battery power stations are generally more suitable for mobile, intermittent, indoor and noise-sensitive applications.
A broader comparison is available in Best Jobsite Power Solution for Construction Sites in the US.
Other FPG3600 Configurations
Different markets and equipment types may require different voltage, outlet and protection configurations.
Standard FPG3600
The standard FPG3600 industrial portable power station is the main product platform with 3600W rated output, 2304Wh capacity and strong short-duration overload capability.
Voltage, frequency and outlet configuration should be confirmed according to the destination market.
FPG3600-RCD
The FPG3600-RCD industrial power station is designed with integrated residual-current protection for applications where an RCD configuration is required.
It is primarily intended for relevant 230V markets and should not be confused with the 120V US configuration.
FPG3600-LINK
The FPG3600-LINK three-phase power station connects compatible FPG3600 units to provide a higher-level power configuration for selected three-phase applications.
It is intended for equipment that cannot be powered by a single conventional portable power station.
These models are not interchangeable without technical confirmation. Buyers should specify the required voltage, frequency, plug type, protection system and intended equipment before ordering.
Frequently Asked Questions
Can a 3600W portable power station run a circular saw?
Yes, it can run many 120V circular saws when the saw’s running load remains within the outlet rating and its startup demand is compatible with the inverter.
Can it run a 15A construction tool?
A 120V, 15A tool has an approximate apparent load of 1800VA. This is below the 2400W NEMA 5-20 outlet limit, but startup current and actual working load must also be considered.
Can it run an air compressor?
Some small and medium 120V compressors may be compatible. However, compressor motors often have high startup current, so each model should be checked individually.
Can it run a saw and vacuum together?
It may be possible when the combined running and startup loads remain below 3600W. However, the combined load must not exceed the limit of the individual outlet being used.
Does 20,000W peak power mean it can run a 20,000W tool?
No. The 20,000W rating is short-duration peak support for motor startup. Continuous rated output remains 3600W.
Can it run 240V equipment?
No. The FPG3600-US is configured for 120V output. A 240V-only machine requires a power source designed for that voltage.
How long can it run an 1800W tool?
The theoretical runtime is approximately 1.28 hours. Actual continuous runtime will be lower because of conversion losses, battery reserve and changing tool load.
Conclusion
A 3600W portable power station can run a wide range of construction tools, including drills, rotary hammers, angle grinders, circular saws, reciprocating saws, jobsite lighting, battery chargers, shop vacuums and selected compressors.
However, contractors should not select a power station based only on the tool’s advertised wattage.
The five most important factors are:
- Voltage compatibility
- Individual outlet rating
- Continuous running power
- Startup surge
- Expected duty cycle
For the FPG3600-US, equipment connected through NEMA 5-20 should remain within the 2400W outlet limit, while total continuous output should remain within the system’s 3600W rated capacity.
When used within these limits, the FPG3600-US provides a practical mobile power source for drilling, cutting, charging, renovation, maintenance and temporary construction work where low noise, rapid deployment and fuel-free operation are important.
Learn more about the complete configuration in the FPG3600-US 3600W Portable Power Station for US Jobsite Applications.
