FPG3600-RCD INDUSTRIAL POWER STATION
The Fullas FPG3600-RCD delivers 3600W continuous output and up to 20000W peak power for industrial worksites, construction projects, and mobile applications. With RCD protection, IP65 rating, 2.3kWh capacity, 2.3h charging time, and >97% efficiency, it provides safer and more stable portable power for demanding environments.
SUPPORT OEM & ODM
FPG3600-RCD Industrial Portable Power Station for Global Distributors
Fullas FPG3600-RCD is built for OEM and ODM cooperation, delivering 3600W continuous output and up to 20000W peak power. With RCD protection, IP65 rating, 2.3kWh capacity, 2.3h charging time, and >97% efficiency, it provides safer and more reliable portable power for industrial worksites, construction projects, and mobile energy applications.
Not for Retail Sale
Wholesale Only

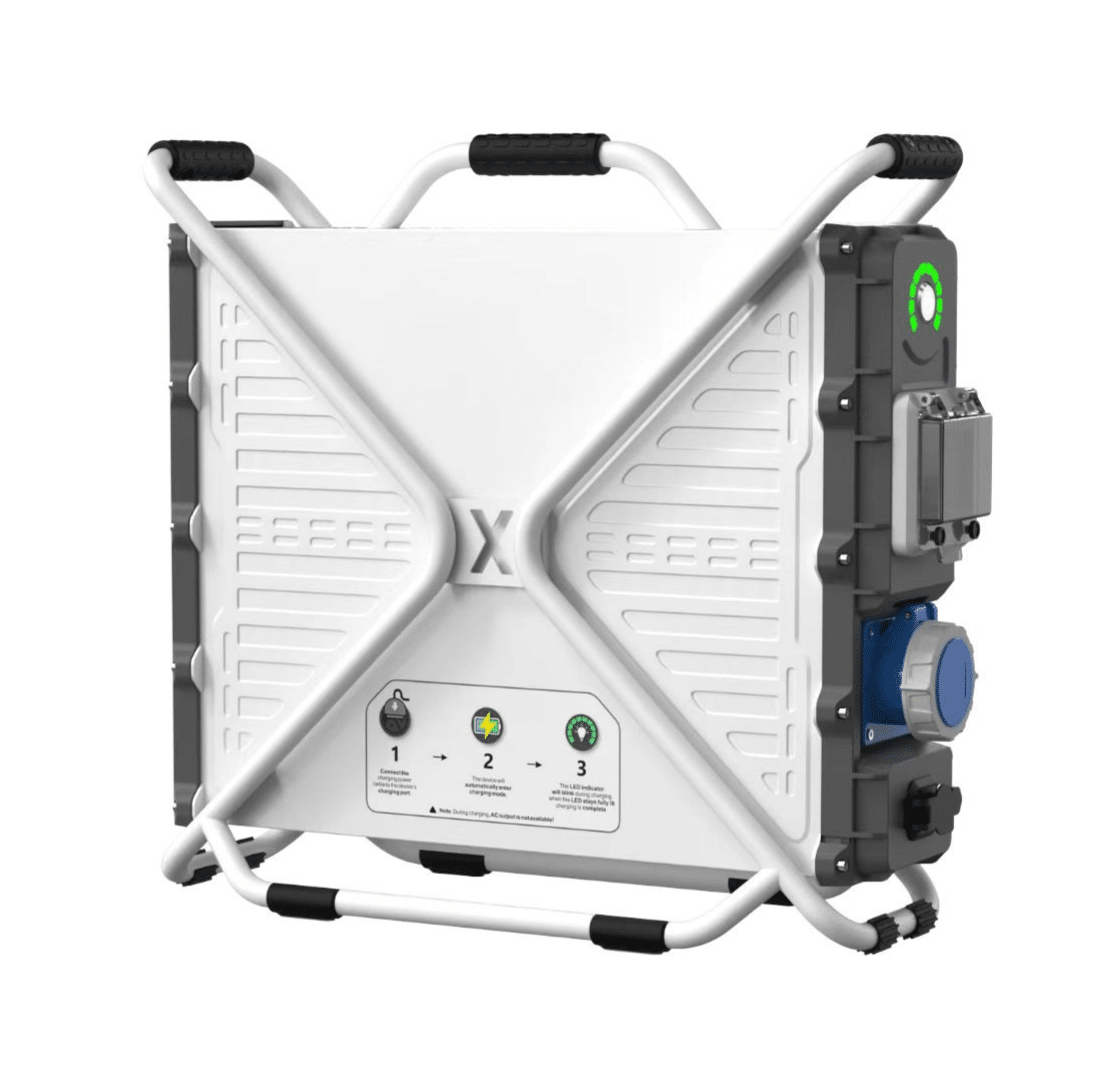

FULLAS Industrial Portable Power Station
FPG3600-RCD
Industrial Portable Battery Generator with RCD
Integrated RCD protection for Europe-facing jobsite power, combining 3600W rated output, 20000W peak output, 2304Wh capacity, and IP65 protection in a compact industrial power station.
SAFETY UPGRADE
Why FPG3600-RCD for Professional Worksites
The RCD version focuses on electric-shock protection, leakage risk reduction and safertool operation in demanding environments where operators may work near moisture, metal structures, public areas or temporary power connections.
Integrated RCD Protection
Designed to reduce leakage and ground-fault risks during tool operation.
IP65 Enclosure
Built for harsh outdoor and wet-zone worksite conditions.
Pure Sine Wave 230V AC
Stable output for professional tools and sensitive electrical loads.
Class I Protection
Designed for grounded equipment and professional jobsite safety systems.
APPLICATIONS
RCD-Focused Use Cases
Use this section on the product page to explain why RCD protection matters in realwork scenarios, instead of only listing parameters.
Solar PV Maintenance
Safer temporary power for commercial solar array testing and inverter repair in high-voltage DC/AC environments.
Public Infrastructure
Supports cutters, breakers, and repair tools where municipal sites require stricter operator safety compliance.
Confined Spaces
Helps reduce leakage risk in damp, enclosed areas such as underground pipes, tunnels, and service rooms.
Wet-Zone Operations
IP65 + RCD protection for rainy outdoor work, forestry maintenance, and water-adjacent jobsites.
PERFORMANCE
Real Tool Performance Highlights
Display RCD-version testing data in a buyer-friendly way. This helps distributors, rentalcompanies and project buyers understand the practical working capacity behind the 3600W / 20000W headline parameters.
3kW Arc Welder
230V, Ø2.5mm electrodes: 45–55 welds; Ø3.2mm electrodes: 35–45 welds.
3.2kW Core Drill
Up to 11 holes, Ø150mm × depth 150mm.
1.4kW Drill
230V, up to 243 holes, Ø35mm × depth 10mm.
2.7kW Cutting Saw
Up to 41 cuts on Ø110mm cast-iron pipes.
SPECIFICATIONS
Technical Parameters for FPG3600-RCD
Use concise tables for product pages. The data below is organized from the RCD-version product parameters and can be adapted into WordPress specification blocks.
Basic Parameters
| Product Name | FPG3600 with RCD |
| Model | FPG3600-RCD / PHS3600M series |
| Net Weight | 25 kg |
| Dimensions | 550 × 485 × 206 mm |
| Capacity | 2304 Wh / 2.3 kWh |
| Protection | IP65 |
| Cooling | External natural cooling |
| Indicator | 10 power indicator lights |
Output Specification
| Voltage | 230VAC, pure sine wave |
| Frequency | 50Hz |
| Rated Power | 3,600W |
| Peak Power | 20,000W |
| Peak Current | 140A max instantaneous |
| No-load Loss | ≤30W |
Input Specification
| Input Voltage | 230Vac |
| Voltage Range | 176–264 Vac |
| Frequency Range | 45–65Hz |
| Rated Current | 6A |
Operating Conditions
| Battery Temp. | Charge 5°C–55°C; discharge -15°C–60°C |
| Working Temp. | Charge 5°C–40°C; discharge -15°C–55°C |
| Protection Class | Class I |
| Grid Protection | 16A |
| Altitude | Up to 2000m |
Industrial Overload Capability
Designed to handle demanding start-up loads from professional tools while maintaining a clear overload performance structure for buyers.
COMPLIANCE & LOGISTICS
Built for Global B2B Delivery
Add this area near the bottom of the product page to answer common distributorquestions about standards, packing, pallet loading and shipment readiness.
Meet Standards
IEC/EN 62477-1, IEC62619, IEC 60730 Annex H, UN38.3, EN 61000-6-1/-2/-3/-4, EN 301489-1/-17, EN 300328, EN 62479, AS/NZS 62368-1
Packaging & Logistics
| Package Size | 580 × 245 × 550 mm |
| Gross Weight | 28.5 kg |
| Pallet Loading | 16 PCS / pallet |
| Container Qty. | 20 pallets, 320 PCS total / 9.2 tons |
R&D Strength & Technology Innovation
Fullas focuses on continuous innovation across power electronics, system integration, and intelligent energy solutions. With strong engineering capabilities and a complete development process, we deliver reliable industrial power products designed for demanding global applications.
Professional Power Electronics Design
Advanced Manufacturing Technology
Comprehensive Performance Testing
Complete Development Process
Inside the Production of the FPG3600-RCD Portable Power Station
The FPG3600-RCD Portable Power Station is manufactured through a controlled production process focused on safety, reliability, and industrial performance. Each unit goes through component assembly, RCD protection integration, electrical testing, performance verification, and final quality inspection before shipment.
With 3600W rated output, up to 20000W peak power, 2304Wh capacity, IP65 protection, and integrated RCD safety design, the FPG3600-RCD is built for construction sites, wet-zone operations, public infrastructure maintenance, and professional mobile power applications.
From assembly to inspection, every production step is designed to ensure stable output, safer jobsite operation, and dependable portable power for global distributors, rental companies, and project buyers.
FPG3600-RCD
Industrial Power, Redefined
Advanced portable energy storage engineered for extreme environments and demanding worksites.
No generators. No noise. Just stable, efficient and reliable power—
wherever professional work takes you.
Lower Carbon Footprint
Compared with fuel-powered generators, FPG3600 significantly reduces carbon emissions, supporting cleaner energy use and more sustainable operations in professional and industrial environments.
Zero Exhaust Emissions
No fuel, no fumes, and no harmful exhaust gases. FPG3600 ensures clean air, silent operation, and a safer working environment—indoors or outdoors.
Lower Total Cost of Ownership
By eliminating fuel consumption and reducing maintenance requirements, FPG3600 lowers operating costs throughout the product lifecycle compared to traditional generators.
