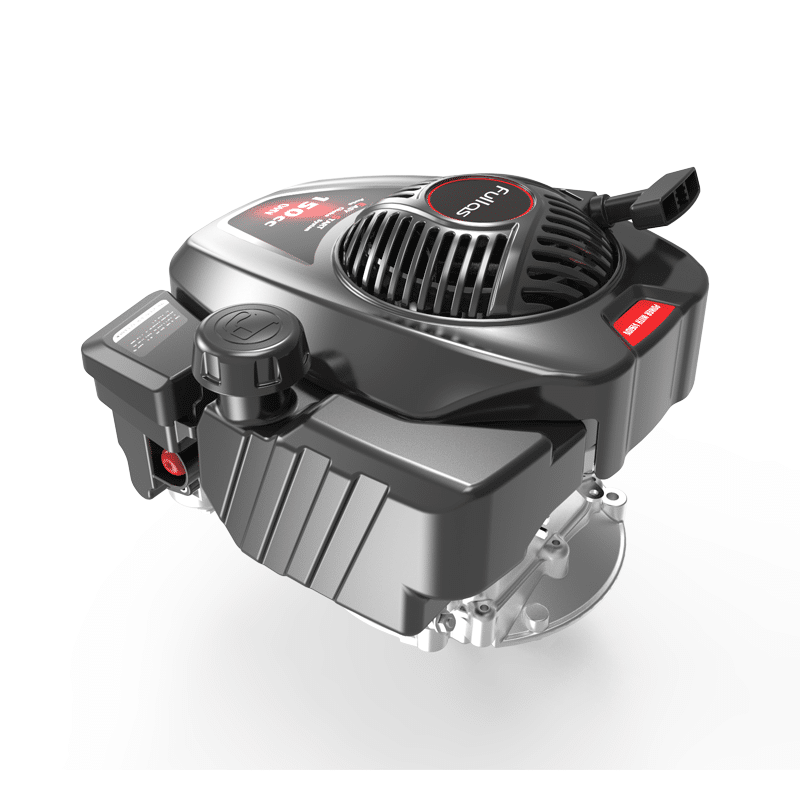

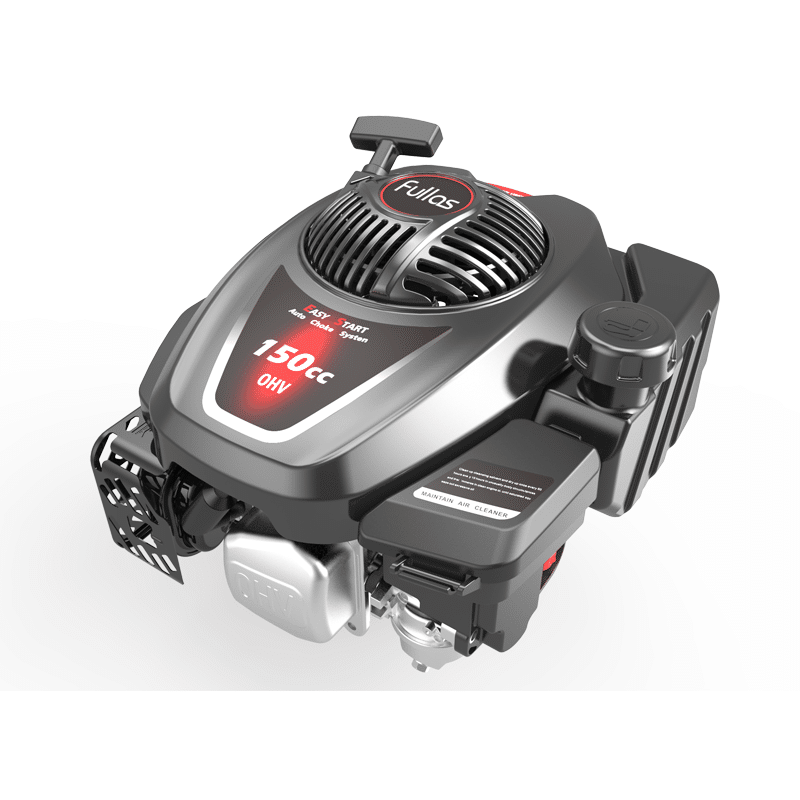

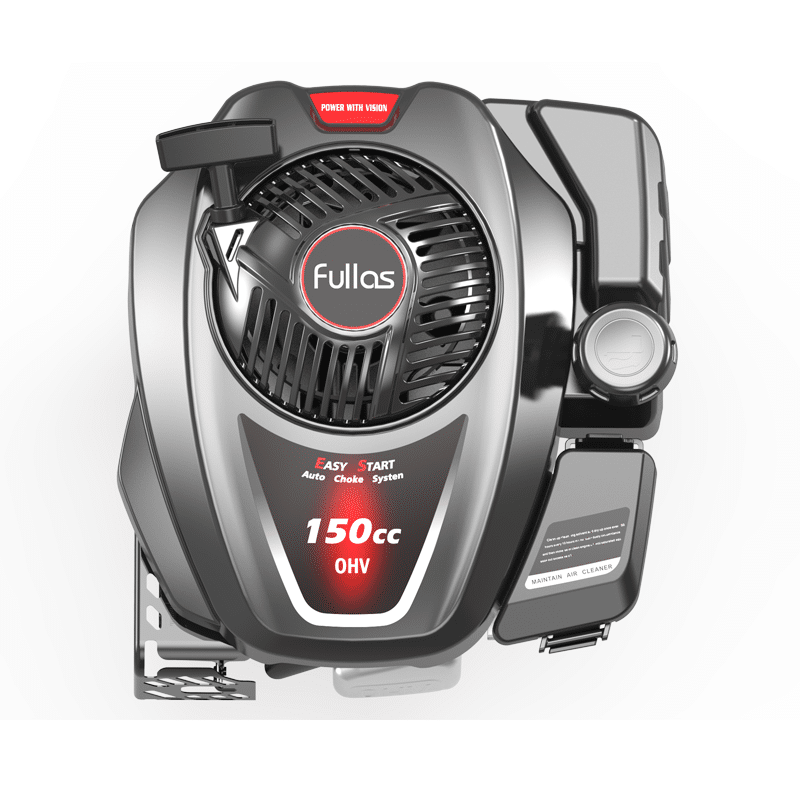

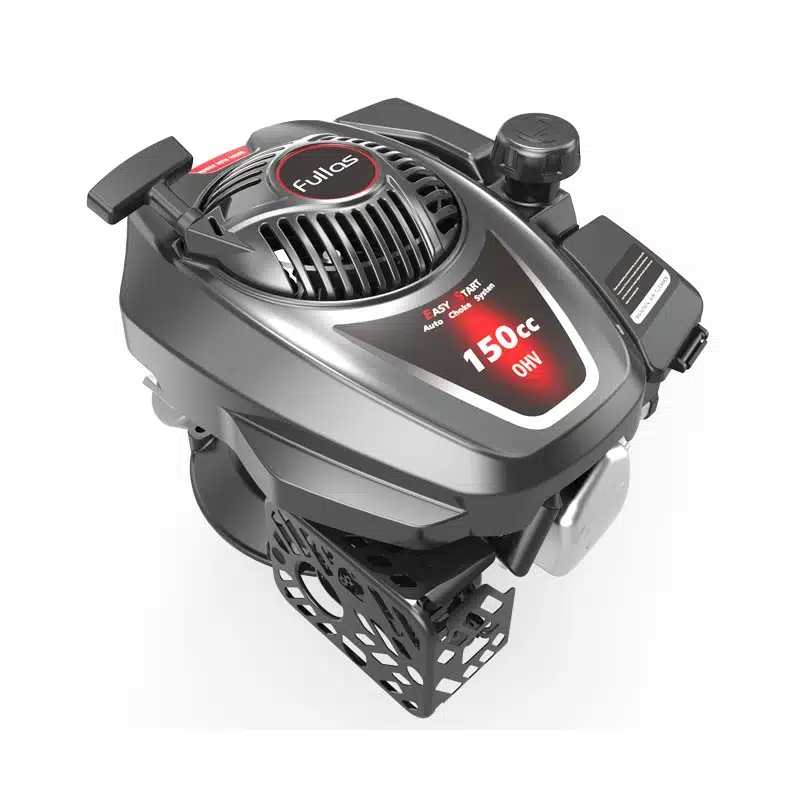

FPV150 150cc Vertical Shaft Single Cylinder Gasoline Engine
Single Cylinder | Air-Cooled | 4-Stroke | OHV
150cc | 2.4kW @3600rpm | Recoil / Electric Start
- Compact vertical shaft design optimized for lawn mower applications
- Stable output ensures smooth blade rotation and consistent cutting performance
- Lightweight structure improves equipment maneuverability and handling
- Low vibration design enhances user comfort during long operation
- Efficient fuel consumption reduces operating cost for daily use
- Reliable starting system with low resistance for quick ignition
Looking for Custom Engine Solutions?
We support OEM & ODM for vertical shaft engines, including branding, configuration, and packaging.
Tell us your requirements — our team will respond within 24 hours.
FPV150 Technical Specifications
| Item | FPV150 |
|---|---|
| Engine Type | Single Cylinder, Air-Cooled, 4-Stroke, OHV (Vertical Shaft) |
| Displacement (cc) | 150 |
| Bore x Stroke (mm) | 65 × 45 |
| Max Power (kW / rpm) | 2.4 kW / 3600 rpm |
| Max Torque (Nm / rpm) | 7.5 Nm / 2500 rpm |
| Oil Capacity (L) | 0.4 |
| Fuel Tank Capacity (L) | 1.0 |
| Air Filter | Foam Filter |
| Speed Control | Constant Speed |
| Starting System | Recoil / Electric Start |
| Net Weight (kg) | 7.9 |
| Packing Dimension (L×W×H mm) | 330 × 310 × 250 |
| Loading Qty (20GP/40HQ) | 576 / 1152 |
Product Description
Balanced Power for Compact Lawn Equipment
The FPV150 150cc vertical shaft engine is designed for light to medium-duty lawn mowers and garden equipment. With a 2.4kW output at 3600rpm, it provides stable and efficient power for daily grass cutting and residential maintenance tasks.
Optimized Vertical Shaft Structure
Its compact vertical shaft design allows direct integration with mower decks, ensuring smooth blade rotation and efficient power transmission. This structure helps reduce mechanical loss and improves overall operating efficiency.
Lightweight and Easy Handling
With a lightweight body of only 7.9kg, the FPV150 improves equipment maneuverability and reduces operator fatigue. It is ideal for walk-behind lawn mowers and portable garden machines.
Efficient Fuel Consumption for Daily Use
The optimized combustion system enhances fuel efficiency, helping reduce fuel costs during regular operation. The simple structure also makes maintenance easier and more cost-effective.
Reliable Starting and Stable Operation
Equipped with recoil and optional electric start, the engine ensures reliable ignition under different conditions. Its low vibration design supports smoother operation and longer service life.
Applications
- Walk-Behind Lawn Mowers
Ideal for residential and light commercial walk-behind lawn mowers, providing stable blade rotation and consistent cutting performance for daily grass maintenance. - Garden & Yard Equipment
Suitable for compact gardening machines used in home gardens, villas, and small green areas where lightweight and easy operation are required. - Landscaping Maintenance Tools
Applicable for landscaping equipment in parks, communities, and small public areas, supporting regular trimming and maintenance work. - Small Outdoor Power Equipment
Can be integrated into various compact outdoor machines that require a reliable vertical shaft engine with moderate power output. - OEM Lawn Equipment Applications
Widely used by manufacturers for entry-level and mid-range lawn equipment, offering a good balance between performance, weight, and cost.
OEM & Customization
- Designed for Lawn Equipment Integration
The FPV150 is optimized for walk-behind lawn mowers and compact garden machines. We support OEM configuration to match different deck sizes, blade systems, and equipment structures. - Shaft & Mounting Customization
Vertical shaft diameter, length, and mounting pattern can be customized to ensure smooth installation and compatibility with various mower designs. - Starting System Options
Available with recoil start or optional electric start, allowing flexibility for entry-level and upgraded product lines. - Lightweight Structure Optimization
We can adjust component layout and configurations to meet different weight and balance requirements, improving maneuverability for end users. - Air Filtration & Environment Adaptation
Optional air filter configurations are available to suit different working environments, helping improve durability in dusty or outdoor conditions. - Branding & Packaging Customization
Support OEM branding including logo printing, color customization, labeling, and packaging design for distributors and private label projects. - Flexible MOQ & Stable Supply
We provide stable production capacity and flexible order quantities, supporting long-term cooperation for lawn equipment manufacturers and distributors.
