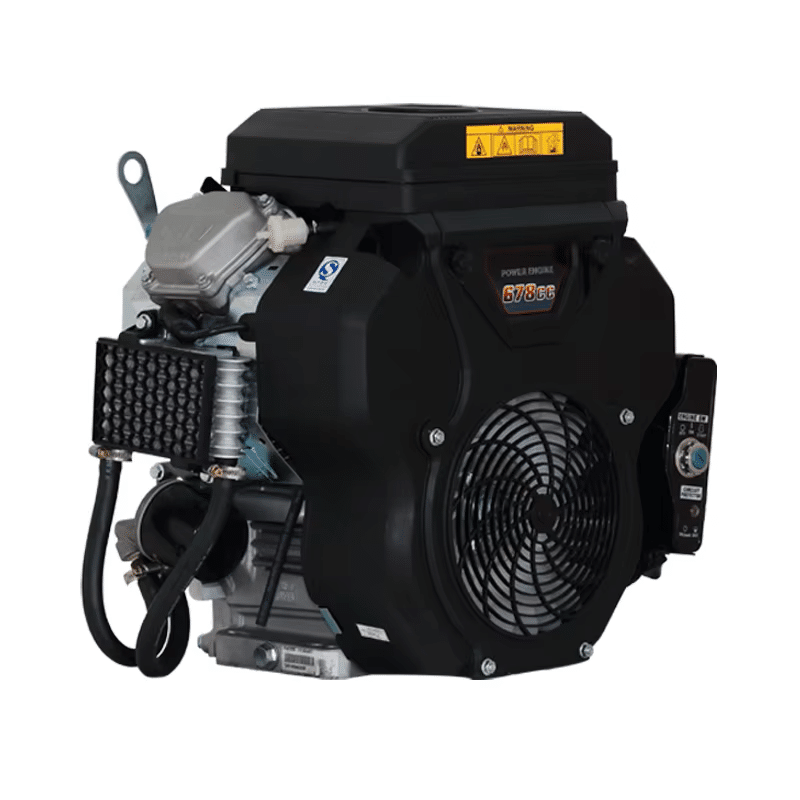

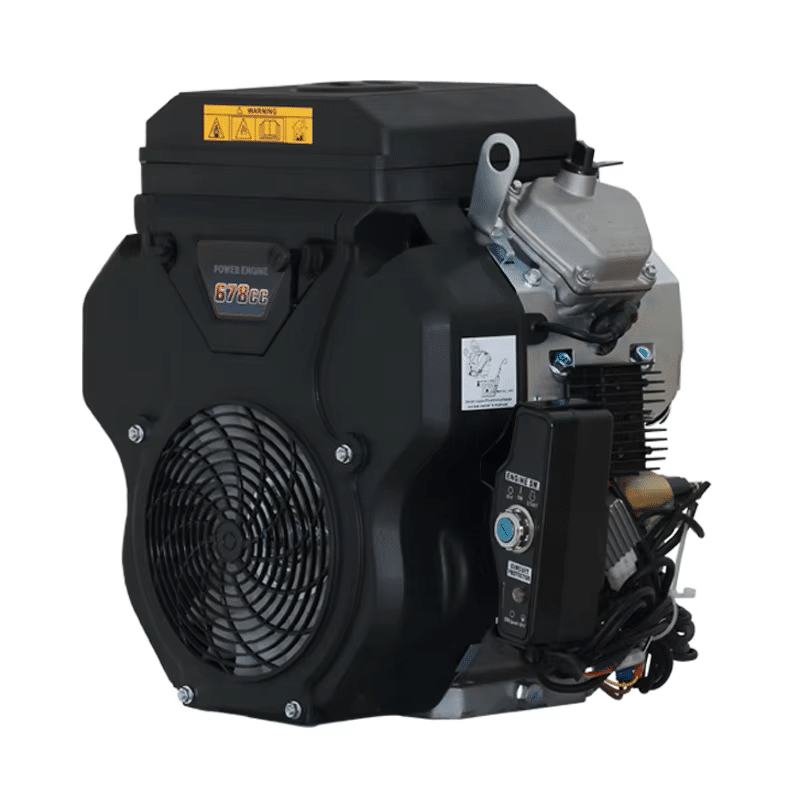

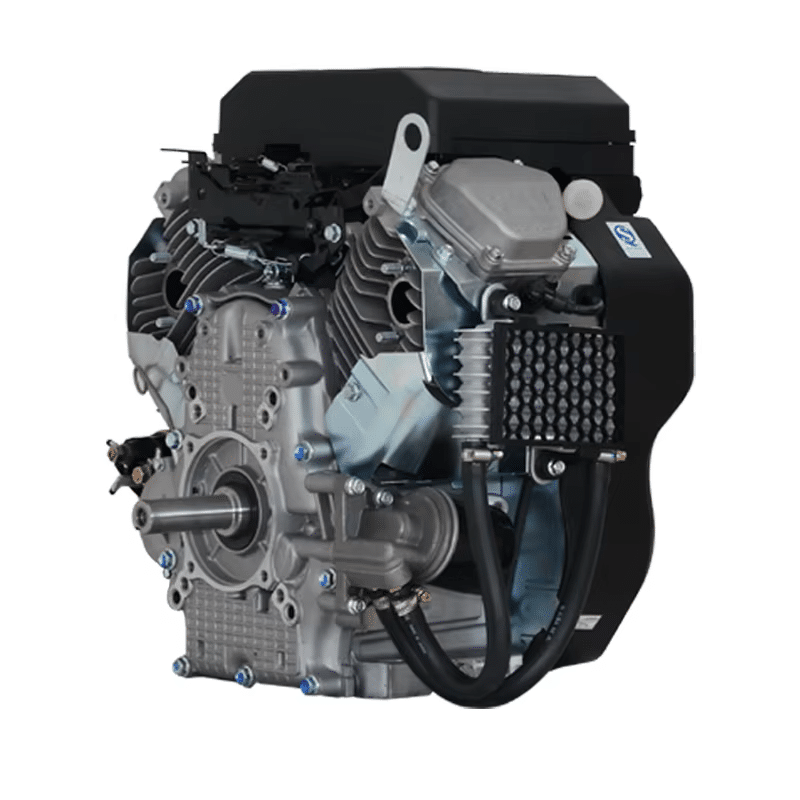

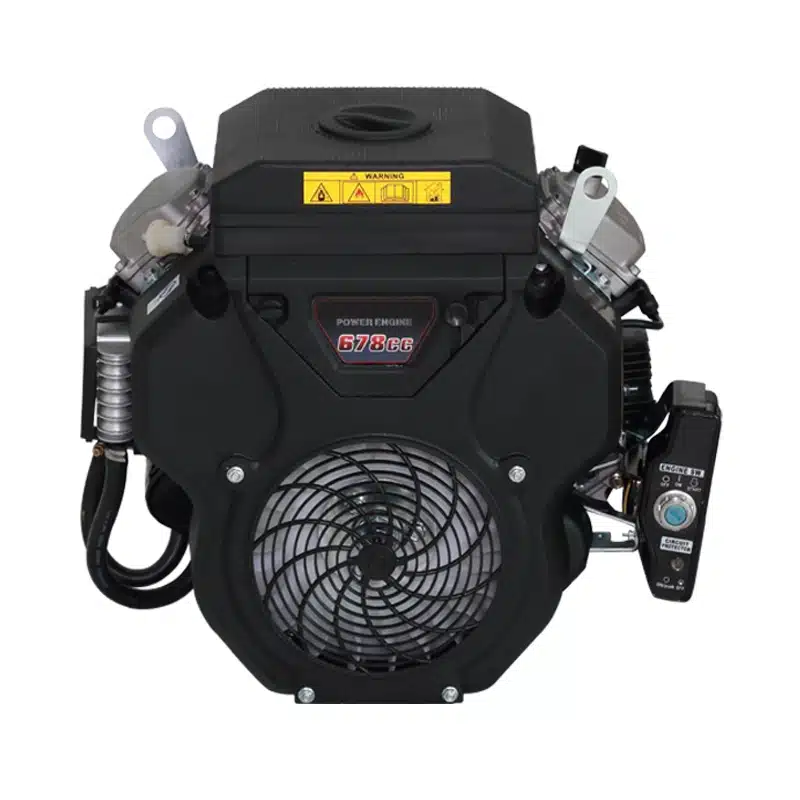

FP2V78FD-2 678CC Horizontal V-Twin Gasoline Engine
V-Twin Cylinder | Air-Forced | 4-Stroke | OHV
678cc | 14kW @3600rpm | Electric Start
- Superior reliability for general equipment applications
- Air-forced cooling supports stable operation during continuous use
- Low noise, low vibration, and low oil consumption
- 90° angled OHV design improves combustion efficiency
- Optimized valve timing increases power performance by 5%–10%
- Splash + pressure lubrication helps extend engine service life
Looking for Reliable V-Twin Engine Solutions?
We support OEM & ODM for horizontal V-twin engines, ideal for general equipment applications with stable performance and fast response within 24 hours.
FP2V78FD-2 Technical Specifications
| Item | FP2V78FD-2 |
|---|---|
| Engine Type | V-twin cylinder, 4-stroke, Air-forced, OHV |
| Displacement (cc) | 678 |
| Net Power (kW / 3600rpm) | 14 |
| Bore × Stroke (mm) | 78 × 71 |
| Net Torque (Nm / rpm) | 42.0 / 2500 |
| Starting System | Electric-start |
| Lubrication System | Splash + pressure |
| Fuel Pump | Yes |
| Ignition System | Transistorized magneto ignition |
| Governor System | Mechanical |
| Air Filter | Foam + paper filter element |
| Engine Oil Capacity (L) | 1.5 |
| Net Weight (kg) | 43 |
| Product Dimension (L×W×H mm) | 510 × 400 × 450 |
| Loading Qty (20GP/40HQ) | 280 / 575 |
Product Description
Optimized Output for Medium-Duty Equipment
The FP2V78FD-2 horizontal V-twin gasoline engine delivers 14kW of output at 3600rpm with a displacement of 678cc, making it suitable for medium-duty equipment that requires stable and consistent power rather than peak output. It is commonly applied in equipment where continuous operation and reliability are more critical than maximum horsepower.
Air-Forced Cooling for Continuous Operation
Unlike standard air-cooled engines, the FP2V78FD-2 adopts an air-forced cooling system that actively improves airflow around key components. This design helps maintain stable operating temperatures during extended use, reducing the risk of performance drop under continuous working conditions.
90° OHV Design for Improved Combustion Efficiency
The engine features a 90° angled OHV structure combined with optimized valve timing, which enhances combustion efficiency and improves power delivery. This structural design contributes to smoother operation and supports a measurable increase in output efficiency.
Stable Running with Reduced Vibration and Noise
The V-twin cylinder configuration provides better balance compared to single-cylinder engines. Combined with internal structure optimization, it reduces vibration and operating noise, improving overall equipment stability and user experience.
Reliable Fuel and Lubrication System
Equipped with a fuel pump system and a combined splash + pressure lubrication structure, the engine ensures stable fuel supply and consistent oil distribution. This helps maintain reliable performance and extends component service life under regular operating conditions.
Designed for Equipment Integration
With a horizontal shaft layout and compact structural design, the FP2V78FD-2 is suitable for integration into various equipment platforms such as generators, agricultural machinery, and engineering tools. The configuration allows flexible installation while maintaining stable performance.
Applications
- Medium Power Generator Sets
Suitable for generator systems requiring stable output in the 10–15kW range. Ideal for backup power, small commercial use, and continuous operation scenarios where thermal stability is important. - Agricultural Machinery & Irrigation Systems
Widely used in irrigation pumps, small agricultural equipment, and field machinery. The air-forced cooling system helps maintain performance in outdoor and high-temperature environments. - Construction Tools & Mobile Equipment
Applicable to compact construction equipment and mobile power units, providing reliable performance for on-site tools, lighting, and temporary power supply. - Industrial Equipment Integration
Can be integrated into compressors, small processing machines, and mechanical equipment that require stable mid-range power with consistent operating conditions. - Garden & Turf Equipment
Suitable for ride-on mowers and other turf care equipment where horizontal shaft engines are commonly required, ensuring smooth operation and lower vibration. - OEM Equipment Manufacturing
Designed for OEM integration with flexible configuration, suitable for manufacturers developing customized machinery platforms with specific performance requirements.
OEM & Customization
- OEM Engine Solutions for Equipment Manufacturers
We provide OEM services for manufacturers and distributors requiring stable mid-power engine solutions. The FP2V78FD-2 is suitable for integration into generators, agricultural machinery, and compact industrial equipment with horizontal shaft configurations. - Branding & Appearance Customization
Custom logo on engine housing or labels
Color customization based on brand requirements
Private label packaging and carton design - Configuration & Component Options
Optional components such as air filter type, muffler, and fuel system
Custom configuration for different application environments
Adaptation for specific equipment mounting and structure requirements - Cooling System & Performance Adaptation
Air-forced cooling configuration suitable for continuous operation
Optimization support for high-temperature or outdoor working conditions
Stable performance setup based on actual application needs - Packaging & Bulk Supply Support
Standard export packaging or reinforced packaging options
Optimized loading solutions for bulk orders (20GP / 40HQ)
Stable supply for long-term OEM cooperation
