Vertical Shaft Single Cylinder Engine
We offer reliable single cylinder gasoline engines with both horizontal and vertical shaft options, engineered for stable performance and efficient power output across a wide range of applications.
- Strong and consistent power delivery
- Fuel-efficient and cost-effective operation
- Easy starting and low maintenance design
- Ideal for lawn mowers, agricultural, and light industrial equipment
SUPPORT OEM & ODM
Gasoline Engines for Global Distributors
We supply reliable general-purpose gasoline engines with flexible OEM and ODM configurations, stable performance, and long service life. Designed for agricultural, industrial, and power equipment applications, our engines meet the demands of global distributors and professional equipment manufacturers.
Not for Retail Sale
Wholesale Only
Features
- Easy starting with low-resistance pressure relief design for reduced pull force and smoother ignition.
- Lightweight structure combined with advanced bearingless technology and a self-lubricating system, improving efficiency and durability.
- Low vibration performance achieved through well-balanced design and a low center of gravity, ensuring smooth and stable engine operation.
- Improved fuel efficiency with reduced oil consumption, supporting long service life and consistent emission performance.
- Large-capacity dual-element air filter (paper + foam) and remote two-stage oil filtration system provide superior dust protection, reducing cylinder wear and extending engine life.

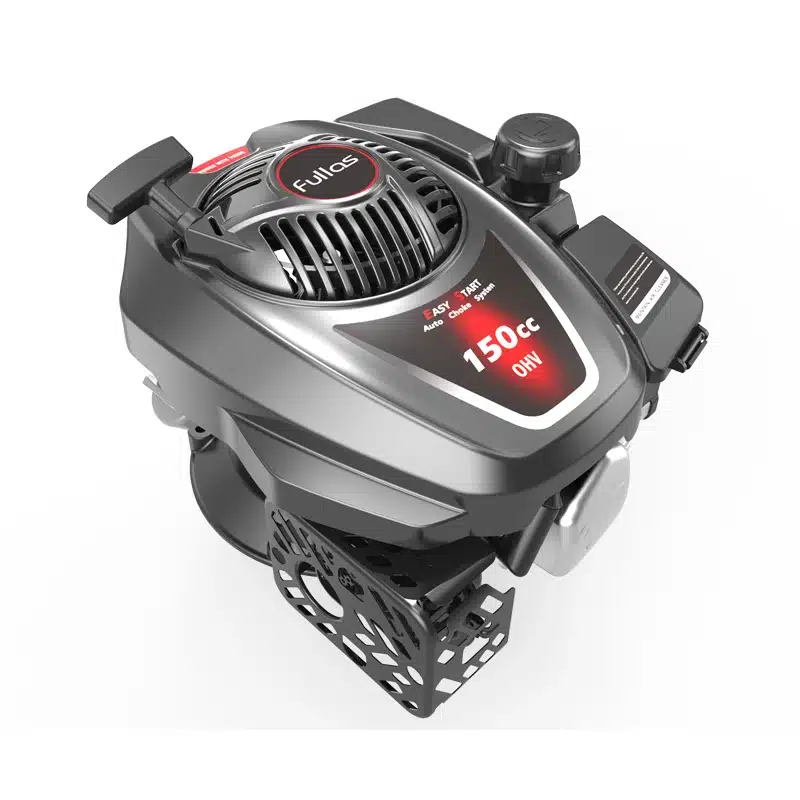

150CC Gasoline Engine (FPV150)
The 150cc single cylinder gasoline engine is designed for lawn mowers and light-duty outdoor power equipment. It delivers stable performance, smooth operation, and fuel-efficient output, making it suitable for gardening tools and small agricultural applications where reliability and easy maintenance are required.
173CC Gasoline Engine (FPV170)
The 173cc single cylinder gasoline engine offers increased power and torque for more demanding applications. With consistent performance and low vibration, it is ideal for walk-behind lawn mowers, garden machinery, and utility equipment requiring dependable operation under continuous use.
200CC Gasoline Engine (FPV200)
The 200cc single cylinder gasoline engine provides higher output and stronger torque for heavy-duty lawn and outdoor equipment. Featuring robust construction and stable operation, it is suitable for commercial lawn mowers, agricultural machinery, and light industrial applications where durability and performance are critical.
WHAT SETS US APART?
Horizontal V-twin Engine Comparison Chart
| Model | FPV130 | FPV150 | FPV170 | FPV200 | FPV224 |
| Displacement (cc) | 131 | 150 | 173 | 200 | 224 |
| Bore × Stroke (mm) | 61 × 45 | 65 × 45 | 70 × 45 | 70 × 52 | 70 × 58 |
| Max Net Power @3600 rpm (kW) | 2.2 | 2.4 | 2.8 | 4.1 | 4.5 |
| Max Net Torque @2500 rpm (N·m) | 6.8 | 7.5 | 9.2 | 11.3 | 12.2 |
| Oil Capacity (L) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 |
| Fuel Tank Capacity (L) | 1 | 1 | 1 | 1.2 | 1.2 |
| Air Filter | Foam | Foam | Foam | Foam | Foam |
| Speed Control | Constant speed | Constant speed | Constant speed | Constant speed | Constant speed |
| Starting System | Recoil / Electric | Recoil / Electric | Recoil / Electric | Recoil / Electric | Recoil / Electric |
| Net Weight (kg) | 7.9 | 7.9 | 7.9 | 10.5 | 10.5 |
| Packing Dimension (L × W × H) (mm) | 330 × 310 × 250 | 330 × 310 × 250 | 330 × 310 × 250 | 410 × 340 × 280 | 410 × 340 × 280 |
| Loading Qty (20GP / 40HQ) | 576 / 1152 | 576 / 1152 | 576 / 1152 | 468 / 972 | 468 / 972 |
Key Technologies Inside Fullas Single Cylinder Gasoline Engine
Fullas single cylinder gasoline engines are designed for compact structure, stable output, and cost-effective performance. Covering displacement options from 131cc to 224cc, these engines deliver reliable power up to 4.5 kW at 3600 rpm, making them ideal for lawn & garden equipment, small generators, pumps, and light industrial applications.
Optimized Single-Cylinder Engine Architecture
The single-cylinder OHV design features a compact layout with reduced mechanical complexity. This structure ensures easy maintenance, high reliability, and consistent performance, especially suitable for cost-sensitive and space-limited applications.
Stable Power Output at Constant Speed
Equipped with a mechanical governor system, the engine maintains constant speed under varying loads. This ensures stable power delivery at 3600 rpm, supporting smooth operation for generators, agricultural machinery, and outdoor power equipment.
High Torque for Practical Working Loads
With maximum net torque reaching up to 12.2 N·m at 2500 rpm, the engine provides strong low-to-mid-range torque. This allows efficient operation for equipment requiring steady pulling force, such as water pumps and small power tools.
Efficient Air-Cooling System
Optimized cooling fins and airflow design enhance heat dissipation during operation. The air-cooled system maintains stable operating temperatures, ensuring reliable performance during continuous running and outdoor working conditions.
Lightweight Design with Compact Dimensions
With net weights as low as 7.9 kg, the engine offers an excellent power-to-weight ratio. The compact structure simplifies installation and integration into various equipment, reducing overall machine weight and improving handling.
Reliable Starting & Simple Maintenance
Available with recoil and electric start options, the engine ensures easy starting in different working environments. The simple lubrication system and foam air filter design reduce maintenance complexity while extending service life.
